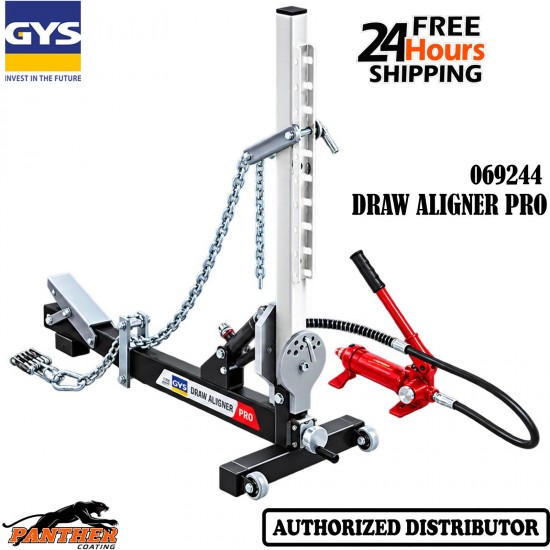

GYS Draw Aligner Pro 069244 1.2T Car Body Panel Dent Pulling System

1.2 TONNE HYDRAULIC CAR BODY DENT PULLING & STRAIGHTENING SYSTEMThe GYS DRAW ALIGNER PRO is a professional hydraulic pulling system designed for the repair and straightening of large dents and damaged vehicle body panels.Its powerful hydraulic system delivers up to 1.2 metric tonnes of pulling force, allowing demanding body repairs to be carried out with minimal physical effort.Fully adjustable and mobile, the DRAW ALIGNER PRO is designed for professional bodyshops and can be used for straightening vehicle underbodies, wings and rear quarter panels.PRODUCT DETAILSBrand: GYSProduct: DRAW ALIGNER PROManufacturer Reference: 069244Type: Hydraulic Body Straightening / Dent Pulling SystemMaximum Pulling Force: 1.2 Metric TonnesConstruction: SteelApplication: Professional Automotive Body RepairPROFESSIONAL 1.2 TONNE HYDRAULIC PULLING SYSTEMThe powerful hydraulic system provides a maximum pulling force of 1.2 metric tonnes.The hydraulic pump operates in a similar way to a conventional hydraulic jack, providing substantial pulling force without requiring excessive physical effort from the operator.This makes the DRAW ALIGNER PRO particularly suitable for professional accident repair and body straightening applications.ADJUSTABLE PULLING ARMThe pulling arm can be tilted and its height can be adjusted, allowing the operator to change the pulling direction according to the location and type of vehicle damage.This provides greater flexibility when working on different areas of a vehicle.±45° INCLINED DENT PULLINGThe vertical pulling bar can be tilted to both the left and right.This allows the pulling direction to be adjusted by up to:±45°The adjustable pulling angle is particularly useful when a straight pull is not suitable for the damaged area.REAR QUARTER PANEL REPAIRThe supplied under-wheel support plate allows pulling operations to be performed on rear sections of the vehicle.This makes the DRAW ALIGNER PRO particularly useful for repairing:• Rear quarter panels• Wings• Vehicle underbody areas• Large body panel dents• Accident-damaged bodyworkHIGH STABILITYThe system incorporates lateral support and a stabilisation bar to provide excellent stability during pulling operations.Its stable design allows controlled pulling forces to be applied while carrying out professional panel straightening work.QUICK & EFFICIENT SETUPThe DRAW ALIGNER PRO has been designed for straightforward workshop setup, helping technicians perform dent pulling and straightening operations quickly and efficiently.Despite its powerful hydraulic pulling capability, the system remains mobile and can be moved around the workshop as required.KEY FEATURES✓ Maximum 1.2 tonne hydraulic pulling force✓ Designed for large dent removal and body straightening✓ Hydraulic operation reduces physical effort✓ Height-adjustable pulling arm✓ Adjustable pulling direction✓ Vertical pulling bar tilts ±45°✓ Under-wheel support enables rear vehicle pulling operations✓ Lateral support system for increased stability✓ Stabilisation bar for secure operation✓ Suitable for underbody, wing and rear-quarter repairs✓ Mobile workshop design✓ Professional bodyshop equipment✓ Steel constructionDIMENSIONSHeight: 1.23 mLength: 1.17 mWidth: 0.40 mManufacturer datasheets list the unit at approximately 53 kg, although newer GYS catalogue material can show different configured weights depending on the referenced setup.INCLUDED ACCESSORIESAccording to the GYS manufacturer datasheet, the DRAW ALIGNER PRO includes:Under-Wheel Support Plate / ChockAllows pulling operations on rear areas of the vehicle.Rocker / Sill Panel WedgeProvides support during body straightening operations.Rocker / Sill Panel Support Arms & Stabilisation BarDesigned to provide additional stability during pulling operations.
